PROSiren™
MULTI-SENSOR FLOW MONITOR WITH VISION
The PROSiren® is a multi-sensor autonomous wireless flow monitoring platform designed to work in the harshest conditions, delivering data to your desk every time. The built-in multi-media platform allows direct connection of our vision camera taking simultaneous pictures that correlate directly with sensor readings. Automatically receive alarm emails and text messages with images showing the alarm event details and severity.
Instantaneously upload data for analysis to BlueLive® Cloud, DropBox®, GoogleDrive® or FTP location of your choice. Future proof worldwide LTE wireless module supports multiple countries and cellular frequencies, WiFi option also supported.

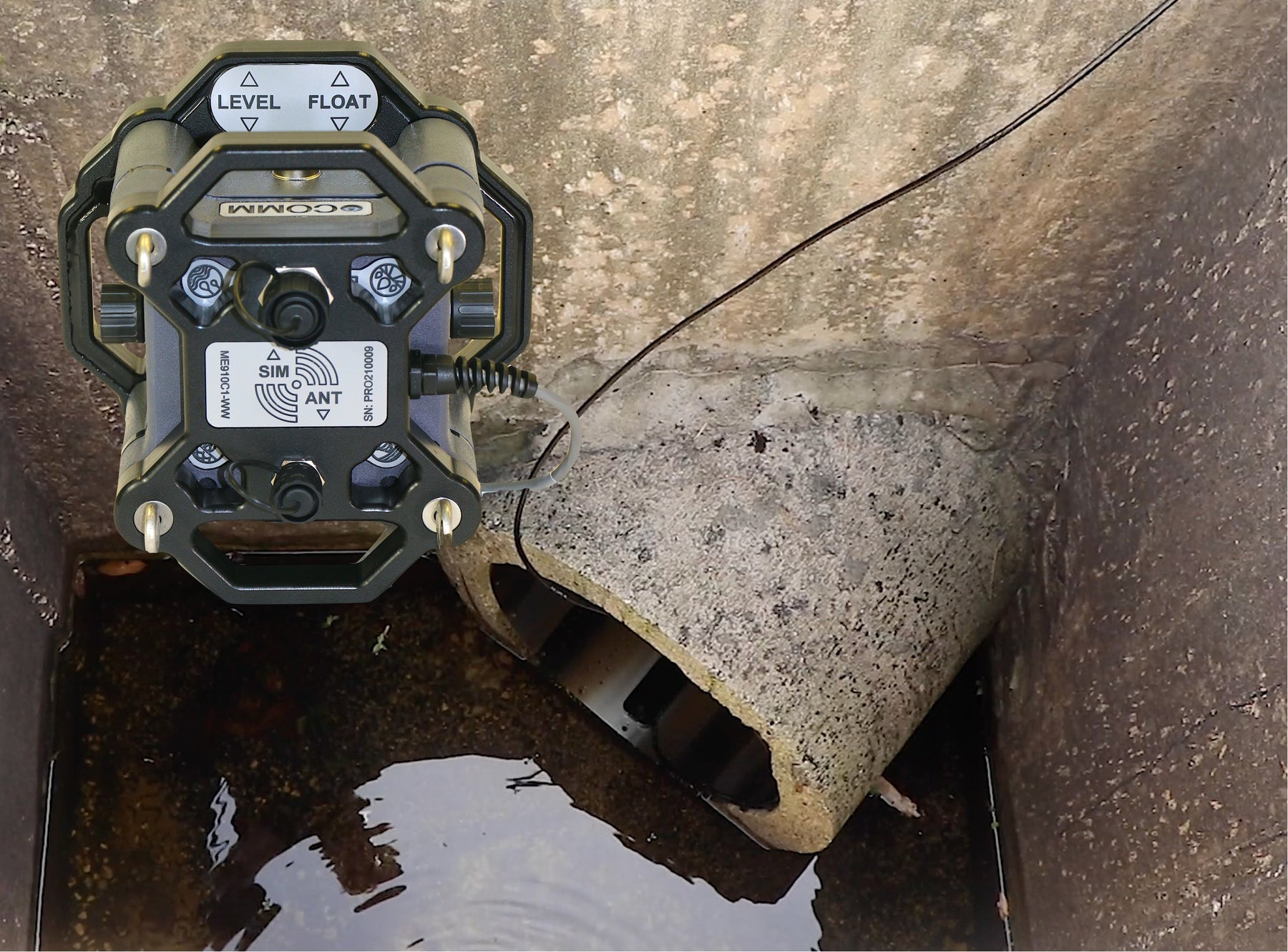

Fully encapsulated, and built like a tank to withstand the harshest of monitoring conditions, make this your ideal choice for sewer and outdoor environmental monitoring.
With sensor options to meet the demand of today’s environmental monitoring challenges, the PROSiren® is the go-to device for short and long term, fast turn-around data acquisition.
Choose from a wide range of off-the-shelf preconfigured sensor kits, or choose your own build and sensors that best fit your application.

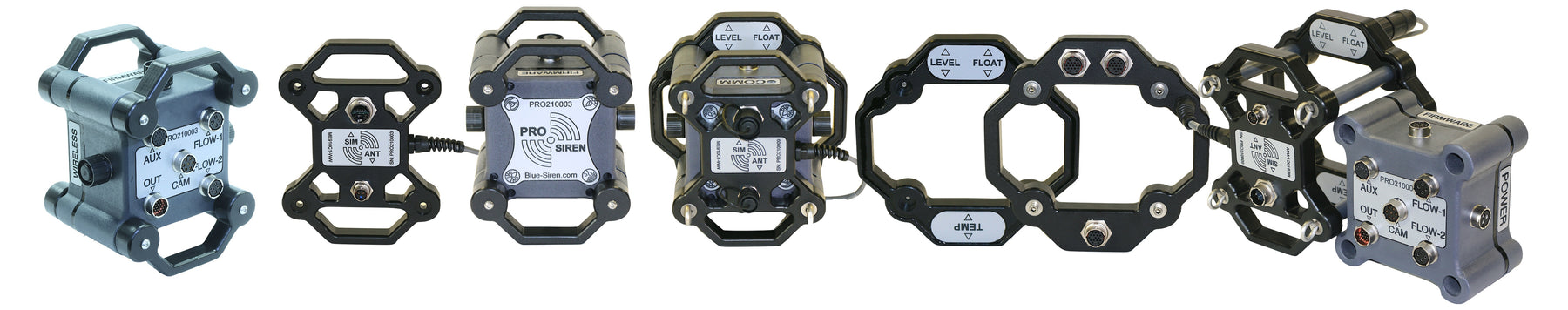

MODULAR PLATFORM
PROSiren® Monitors are manufactured using a the PRO Modular System, easily change wireless from 4G to WiFi by simply swapping out the PRO Module. Several ports are directly embedded into the monitor including; Dual Flow, Vision, Auxiliary, Output, Firmware, Power and Communication. Add additional sensors using the auxiliary (SEMs) Sensor Expansion Modules. The monitor is fully encapsulated and electronics protected from external moisture and water.
FLOW and LEVEL KITS
Click Product Name or View PDF to Download Specification Sheets:
Single Flow AV |
Dual Flow AV |
Micro AV Low Flow
|
Non-Contact Flow |
 |
|
 |
 |
|

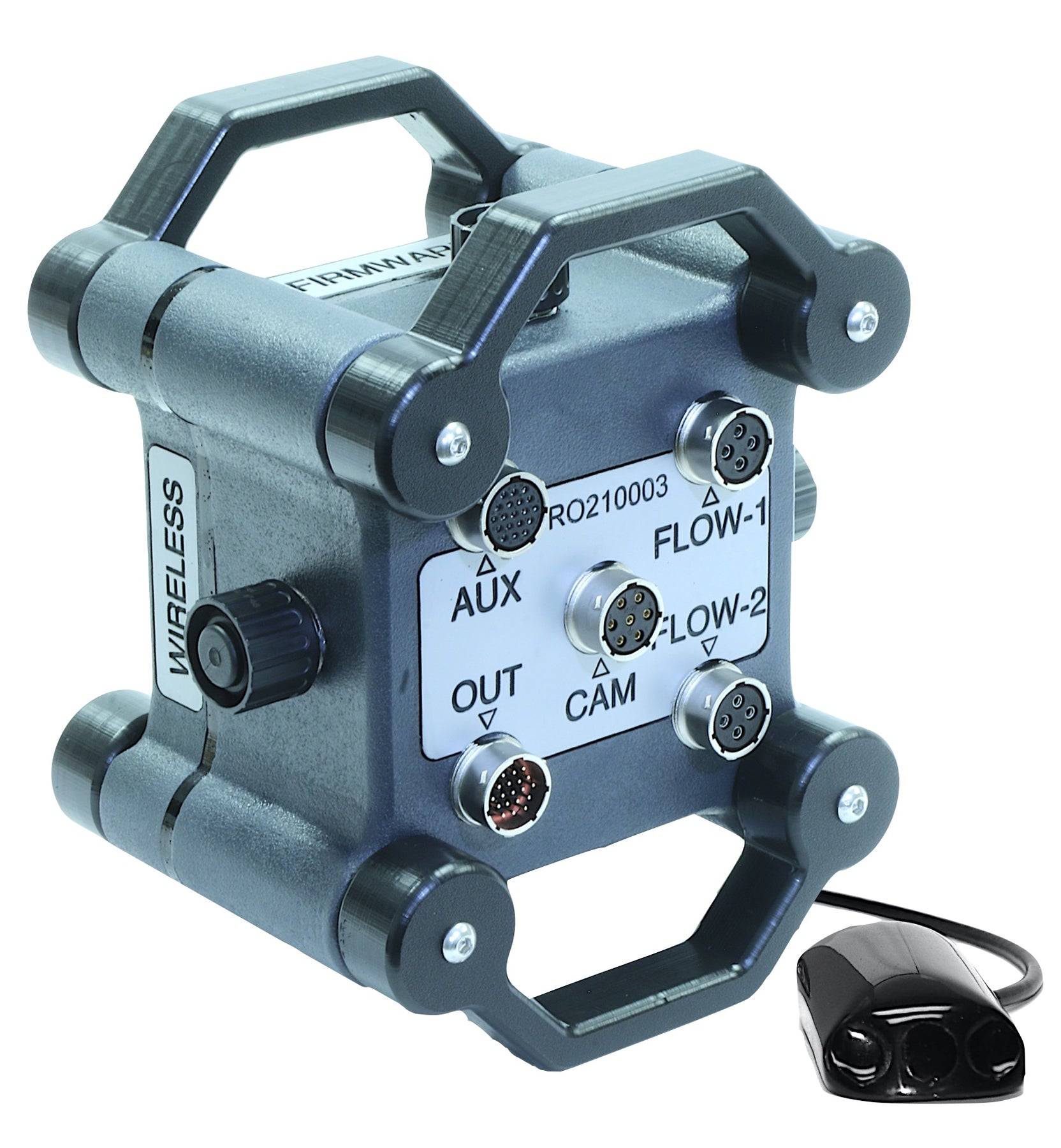

Single Pipe Ultrasonic Doppler Flow Monitor using Dual Wave Area-Velocity Technology. |

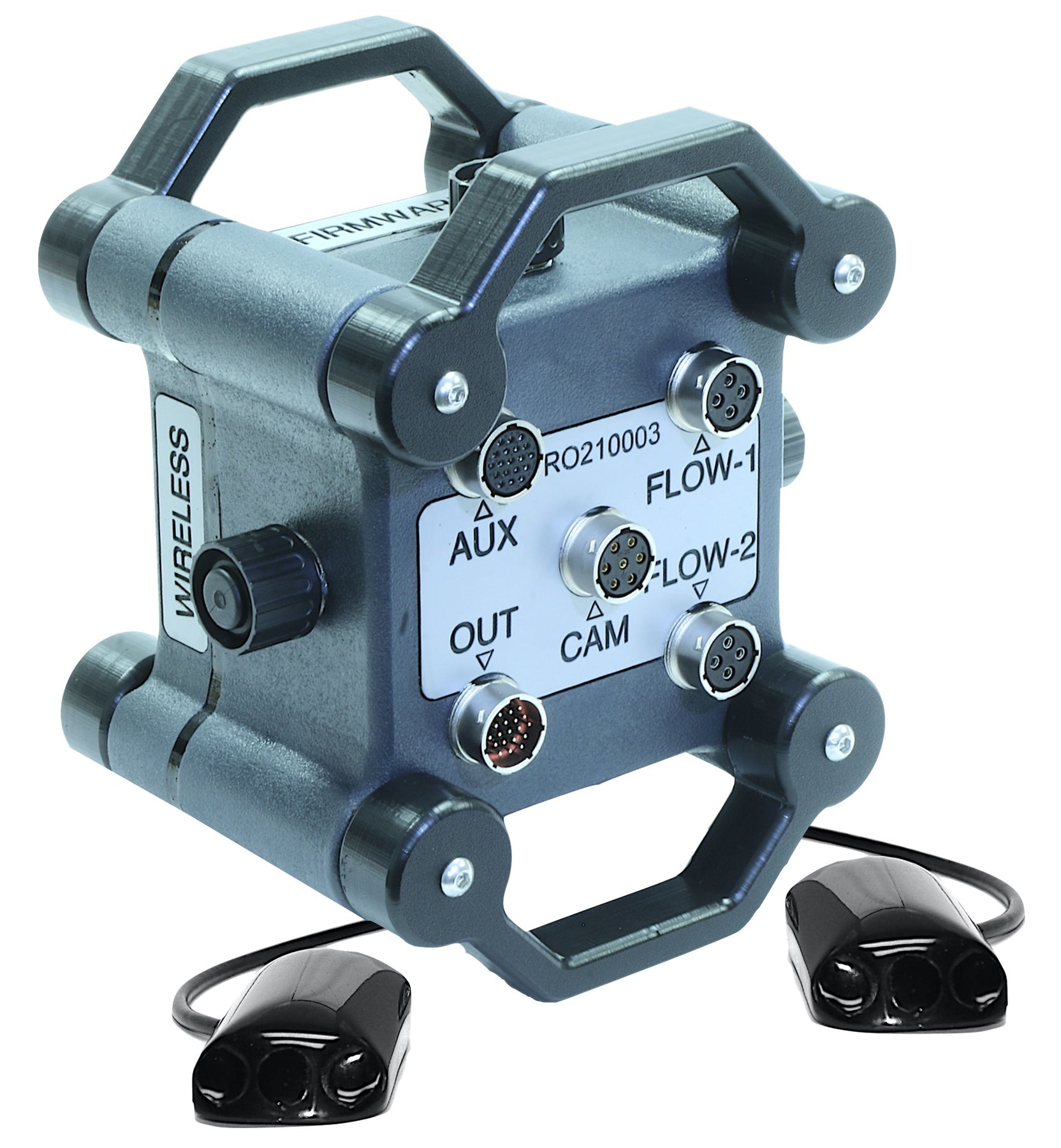

Dual Sensor or Dual Pipe Ultrasonic Doppler Flow Monitor using Dual Wave Area-Velocity Technology. |
Monitor Flows Less than 1 inches Deep using the PROSiren Low Flow Kit with Micro Velocity and In-Pipe (Low Dead Band) Level Sensor. |

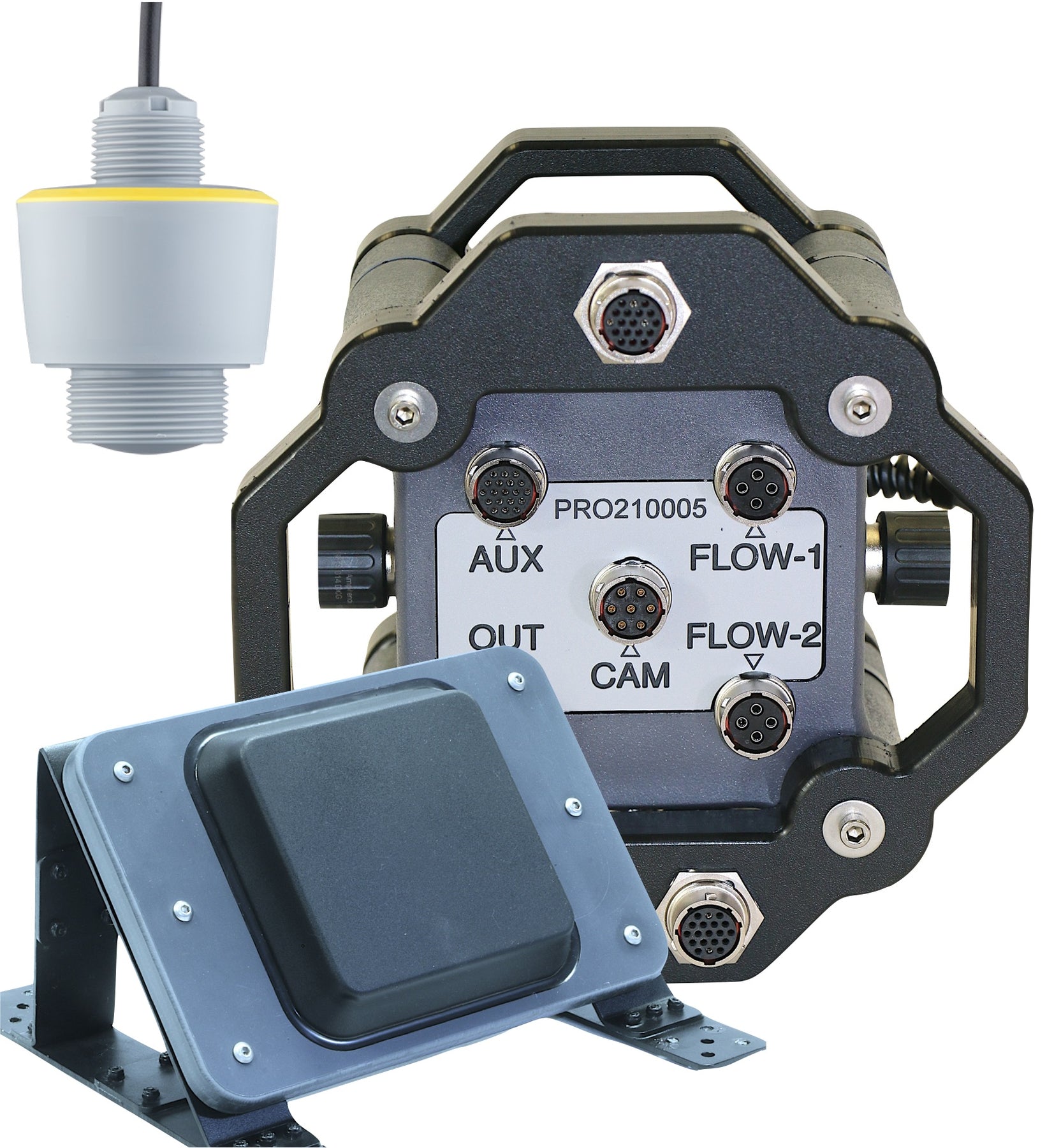

Non-Contact Flow Monitoring Kit, including Radar Velocity and Radar Level. Great for Rivers and Hard to Monitor Sewer Locations. |
Auto Cal (AV) |

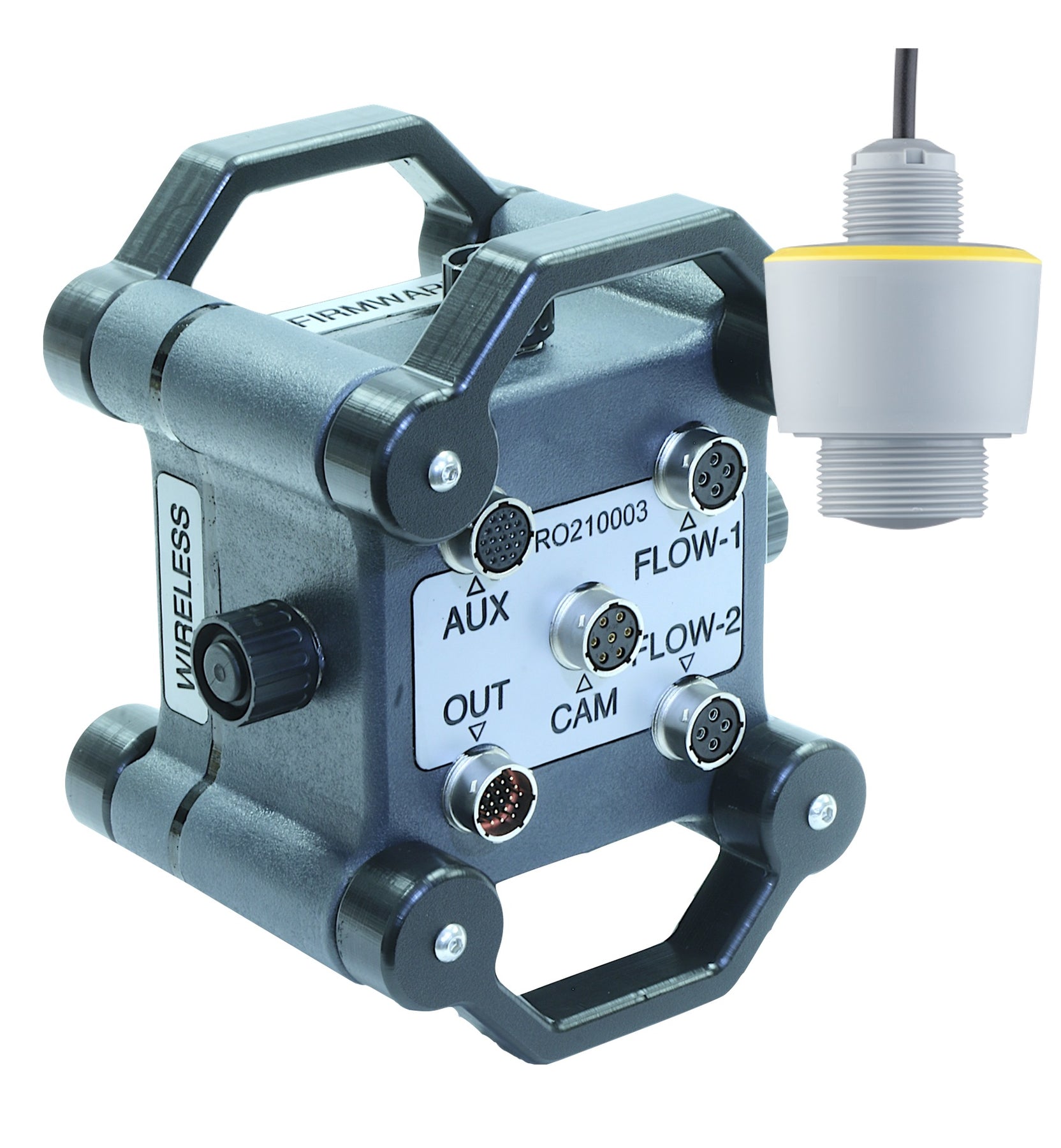

Radar Level |
Ultrasonic Level |
In-Pipe Level |
 |
 |
 |
 |
|

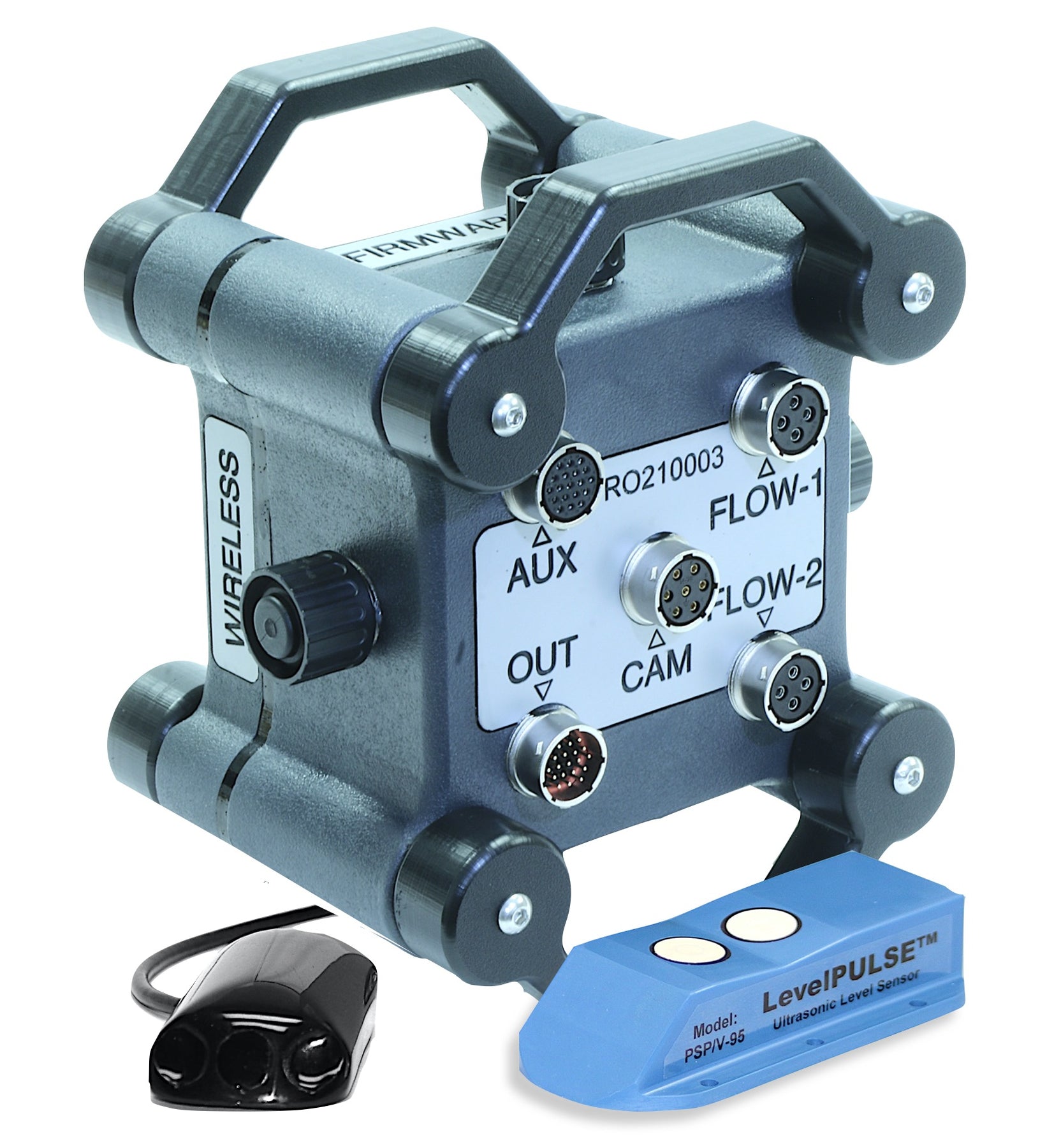

Installation of redundant level technology combined with smart operating code allows for a self calibrating level system. Great for hard to monitor locations..
|
Accurately monitor from 0 to 8m (25ft) or 0 to 15m (50ft) using the PROSiren Radar Level Kit. Easy to install and use makes this a great solution where continuous reliability and accuracy are required. |

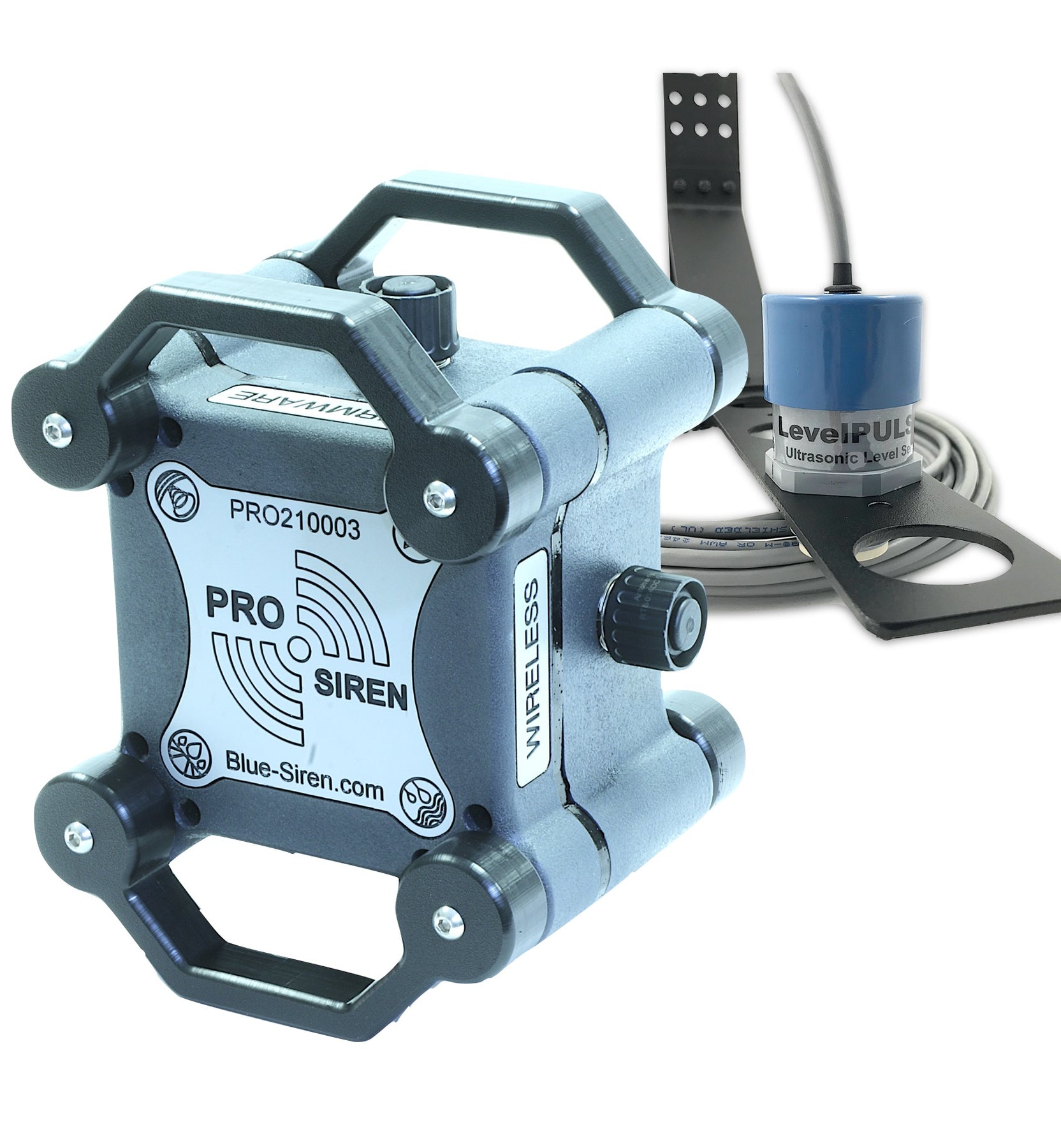

PROSiren Long Range (20ft) Ultrasonic Level kit is a great economical solution when sensing water level from tops of manholes, or bridges. |

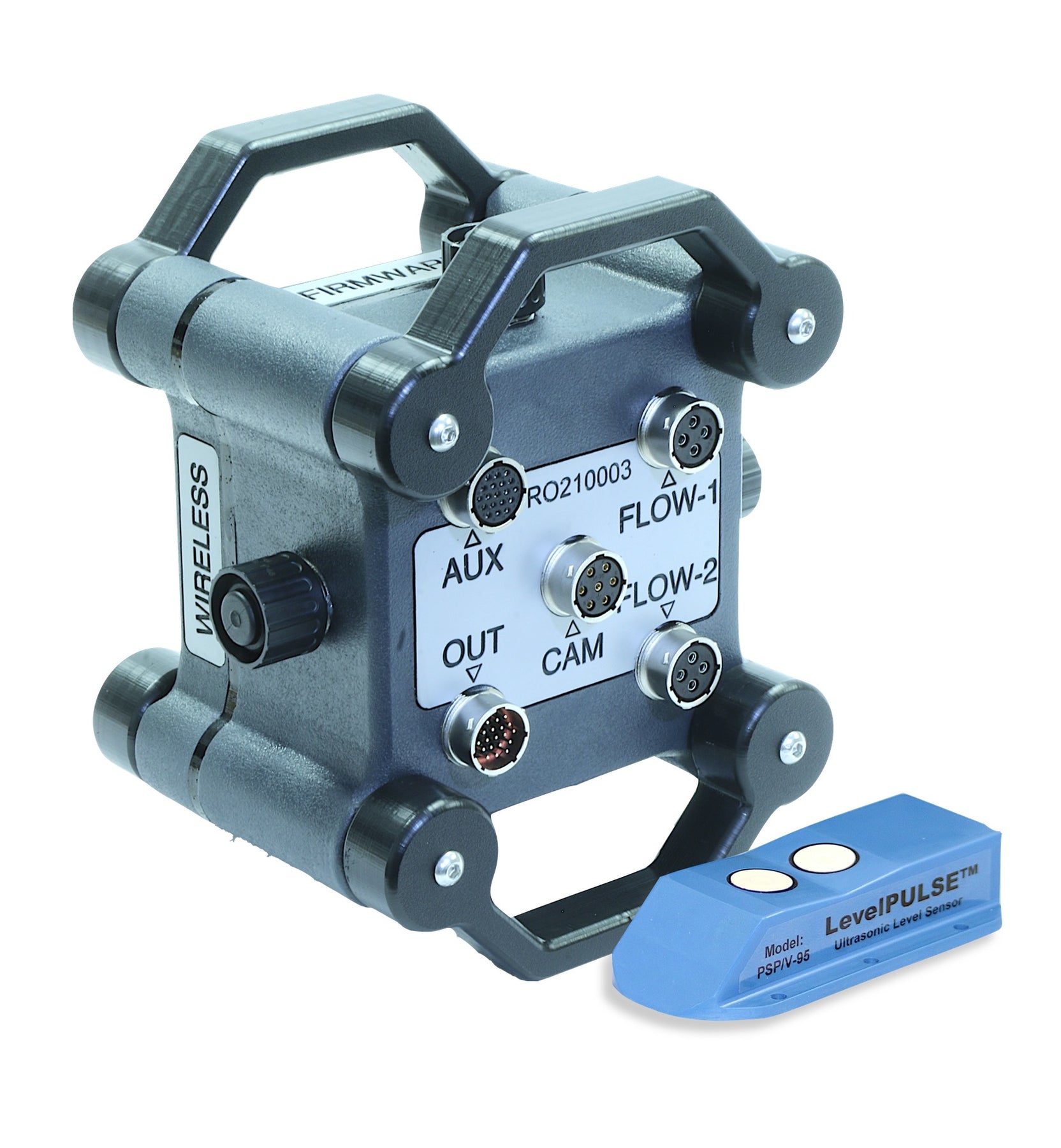

Short Range, Dual Wave, Ultrasonic Level Kit is great for accurately measuring level it tight spaces . Excellent solution for weirs, flumes and sewers. |
OVERFLOW ALARMING KITS
Click Product Name or View PDF to Download Specification Sheets:
Overflow Alarm Monitor |

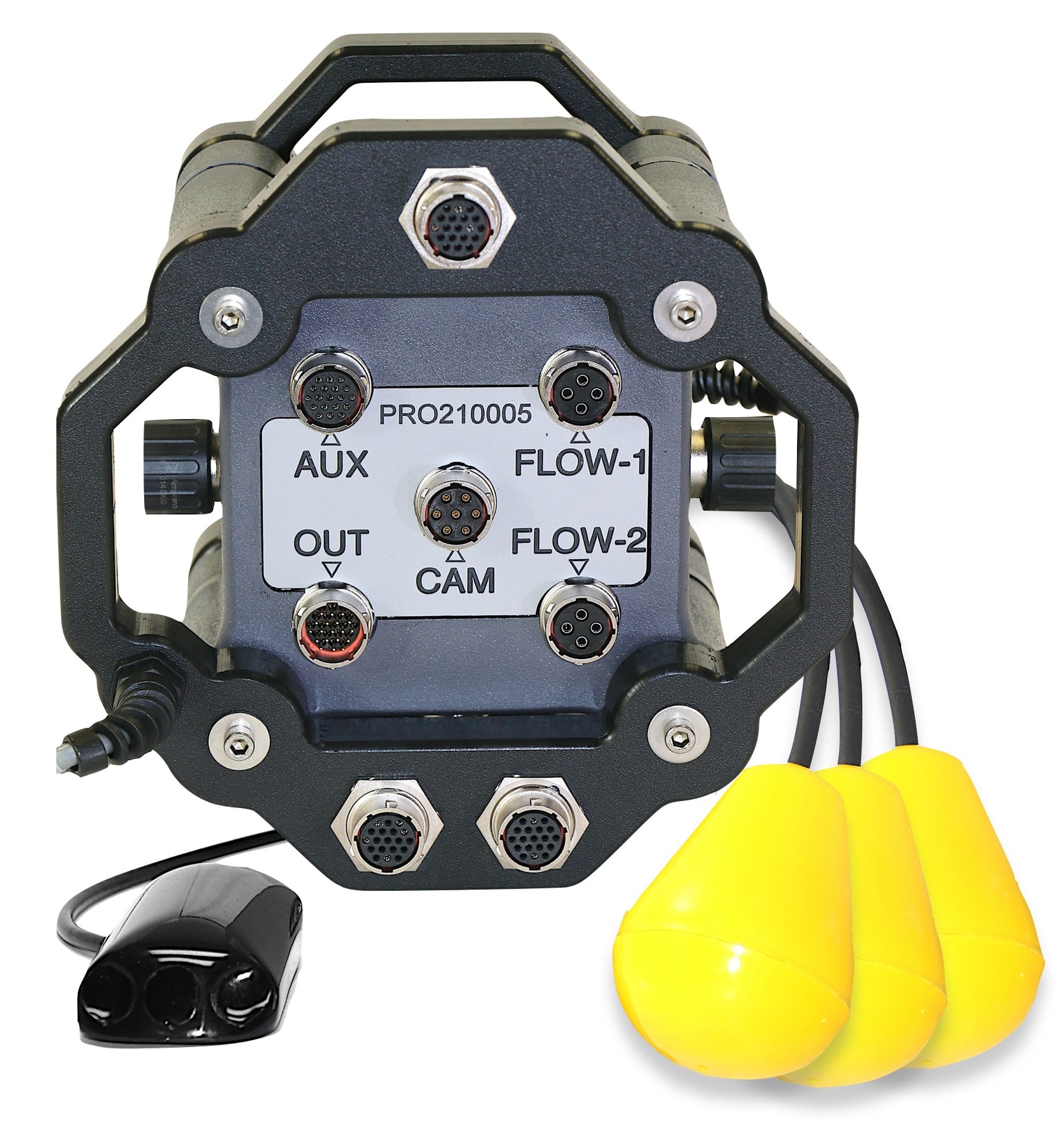

Overflow Alarm with Flow and Volume
|

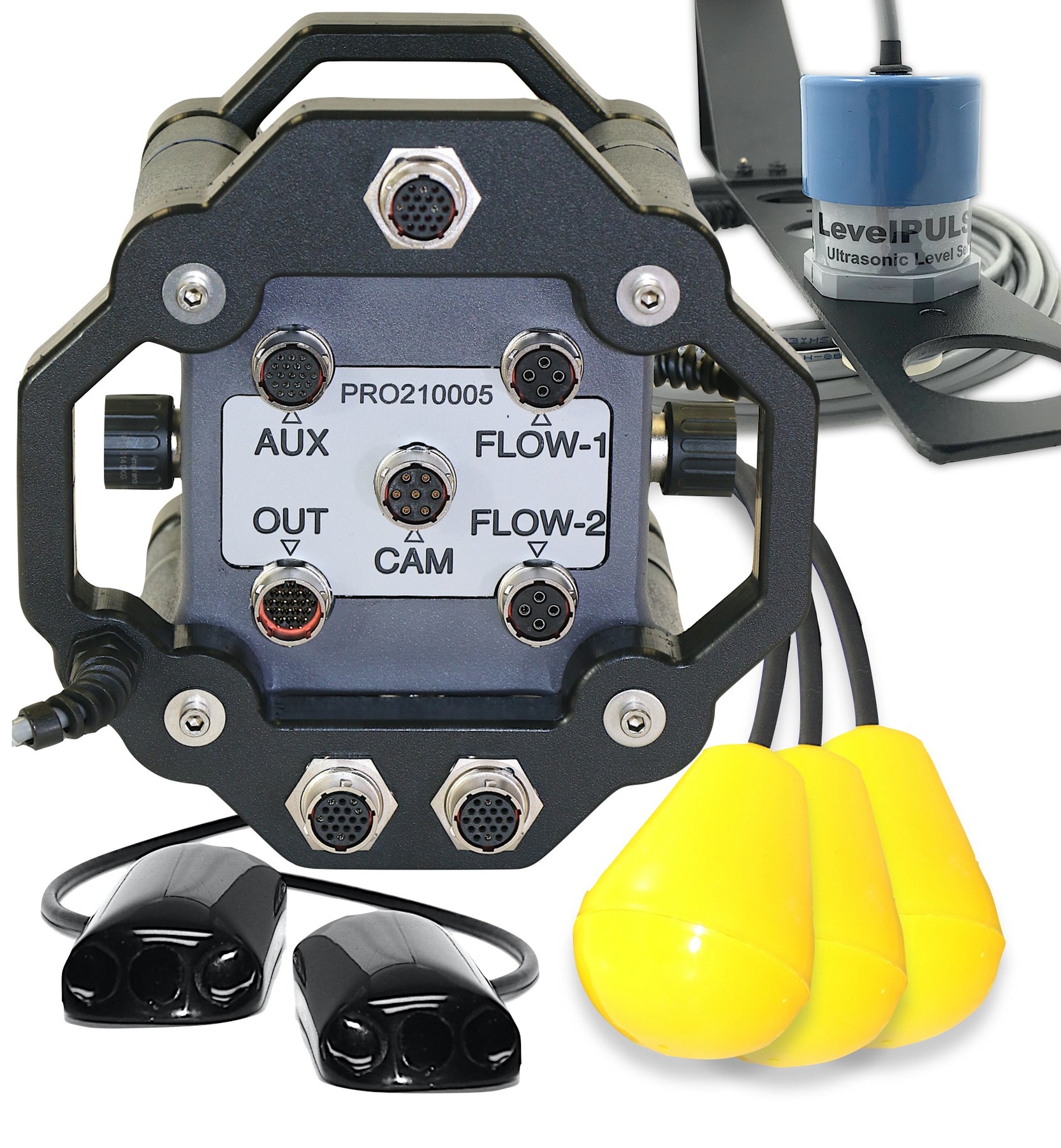

CSO Monitoring Kit
|
CSO Monitoring Kit with Water Quality
|
|
|
|
|
|
|
Easily Monitor when a sewer is overflowing using single or multiple critical alarm switches. Simply install the switch at the overflow level and wait for the alarms. Receive pictures and time-lapse video of the event in real time. |
Monitor for real time overflow alarms and measure overflow flow and volume using the Dual Wave Doppler flow sensor. Receive alarm emails with images and time lapse video. |
Monitor multiple overflow pipes and measure dry and wet weather flow rates. Set multi point logic alarms and mitigate any false alarms. receive alarm images with email and text alerts. |
Receive real time overflow alarms, monitor flow and water quality. Set monitor to trigger external water sampler when overflow levels hit a critical point. Receive alarm images when using the Vision Sensor. |
Overflow Kits can also be manufactured to meet any custom monitoring requirement including addition or proximity switches, sampler trigger control, additional level or flow sensors, if you do not see what you need please give us a call at (321) 242-0300 and we will get you a specification and a quote!
WATER QUALITY and SAMPLING KITS
Click Product Name or View PDF to Download Specification Sheets:
Flow Proporitonal Sampler Controller |
Water Quality Flow Kit |
Water Sonde Flow Kit
|

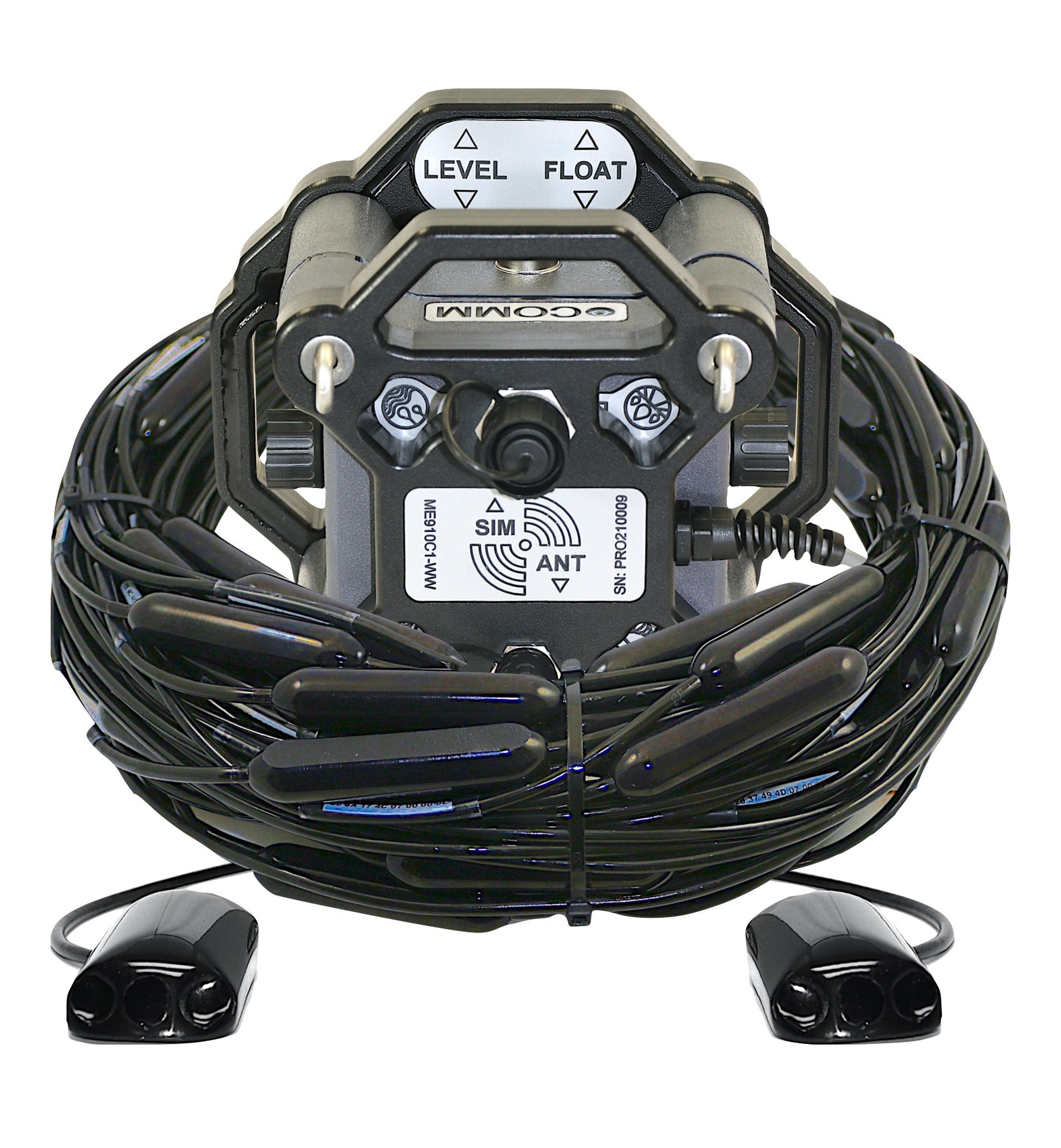

Temperature String Kit
|
 |
 |
 |
|
|
Complete sampler controller with dual trigger, one for flow proportional and the second for sensor alarm trigger. Supports all PROSiren sensors, including flow, water quality and vision. Use external camera to verify sampler bottles are full. * Sampler Sold Separately |
Monitor single or multiple water quality parameters including pH, EC, ORP, Temperature, Dissolve Oxygen and more. Easily determine chemical loading when combining water quality with flow measurement. Optional Vision sensor can be submersed and used as underwater camera. |
PROSiren monitors support a variety of different multi-parameter water quality Sondes including YSI, In-Situ and AquaREAD. Combine Sondes with flow sensors and determine loading. Great for aquaculture and scientific studies. * Sondes Sold Separately |
Track and monitor over 200 different temperature points from 1ft to 3 ft (1m) in length. Install directly in sewer pipes and determine where inflow may be happening. Great for Leak detection and Inflow and Infiltration Studies. |
Other PROSiren™ Options Available, Call for Price and Availability
- Water Distribution Vaults
- River and Lake Monitoring
- Remote Aquaculture
- Geo-technical Monitoring
PROSIREN™ - Product Specification Sheet:
 |
 |
PROSiren™ Monitor with Vision®
|

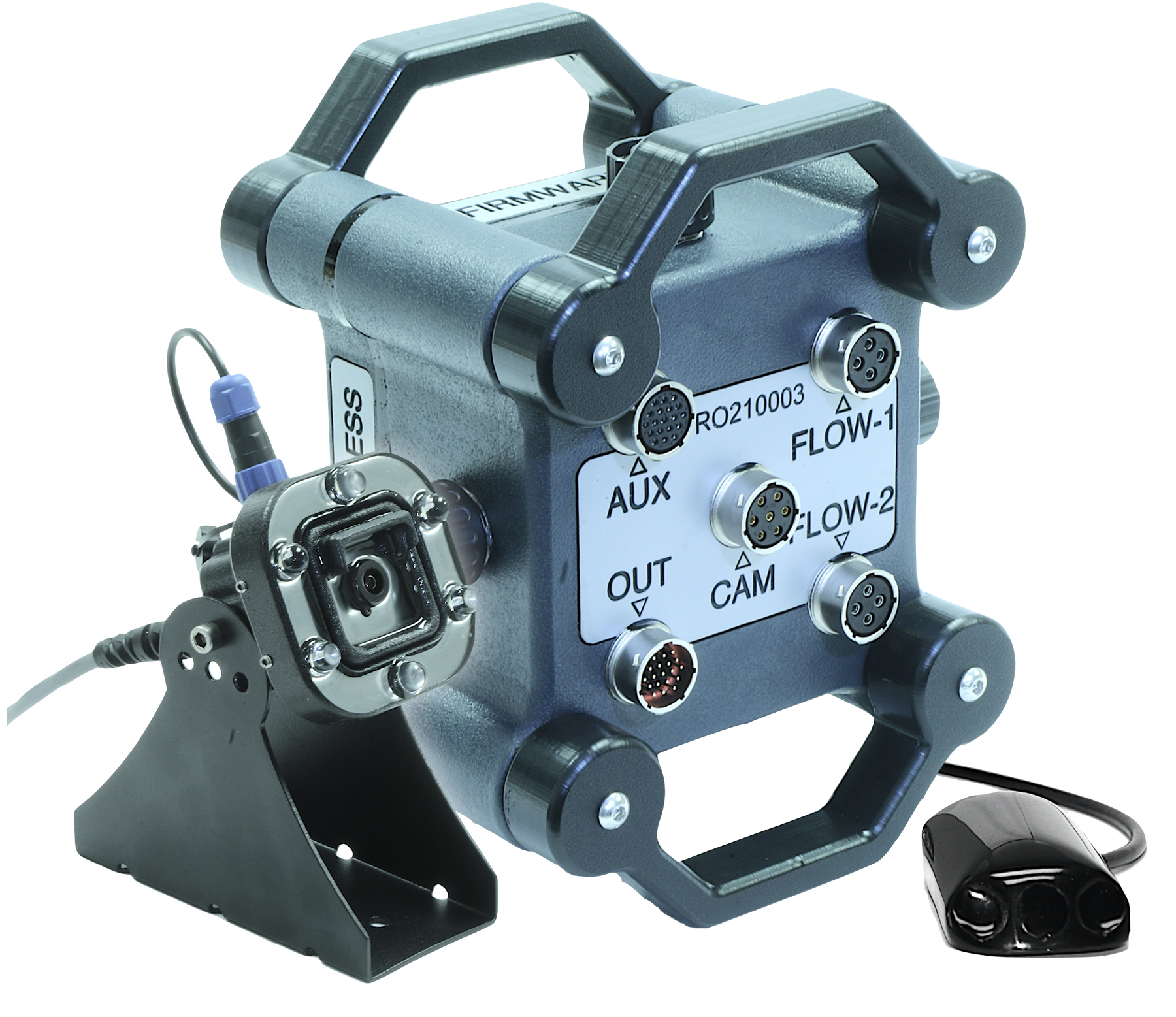

PROSiren™ monitors are equipped with a Vision Port allowing you to connect a 5MP camera with LED option, camera configurations are;
|
|
PROSiren™ Integrated Camera Port
|
PROSiren® We all know the future of monitoring technology is Vision Ai, a technology which Blue Siren has been cultivating since the beginning. NEW 5MP Camera Now Available
|
|
PROSiren™ Flow & Velocity Options
|
PROSiren™ monitors can be purchased using a number of different Flow Velocity sensors. The following configurations are available;
|
PROSiren™ Depth and Level Options
|
PROSiren™ monitors can be purchased using a number of different Depth and Level sensors. The following configurations are available;
|
|
PROSiren™ Water Quality Options
|
PROSiren™ monitors can be purchased using a number of different water quality sensors. The following configurations are available;
|
|
PROSiren™ USB Storage Options
|
PROSiren™ monitoring systems support an external USB option, ideal when collecting alot of images or looking for an alternate backup for your data. Data is automatically converted to CSV and JPEG formats for easy viewing and analysis. |
|
PROSiren™ Auxiliary Sensor Splitters
|
PROSiren™ monitoring system support a modular frame allowing you to add or remove different monitor accessories Easily transform your monitor from a CSO alarming system to a water quality system in minutes. The following configurations are available;
|
PROSiren™ Rugged Connectors
|
PROSiren™ Selecting the right connector is a balance of cost, functionality and ruggedness. Blue Siren has spent years testing and researching a reliable connector and has selected an Amphenol manufactured single turn Industrial design. |
|
BLUESiren® Made in the USA
|
|
